Hot Dipped Galvanized G80 Lifting Marine Anchor Chain Rust Resistant for Marine Use

Brand Name : JC Maritime

Model Number : U1 U2 U3

Certification : CCS.ABS.LRS.BV.GL.DNV.NK.RMRS

Place of Origin : China

MOQ : 27.5 Meters

Price : USD 800~1200 PER PIECE

Payment Terms : T/T,Western Union,L/C,MoneyGram,D/A,D/P

Supply Ability : 15000 Metric Ton/Metric Tons Per Year

Delivery Time : 10-45 Days

Packaging Details : 1. Bare packed: packed in bundles 2. Packed in iron drums then on pallets 3. Packed in woodencase 4. Required by cllent shipping

Product Name : Marine Anchor Chain

Type Number : U1 U2 U3

Material : High - Strength Alloy Steel/Stainless Steel/Carbon Steel

Surface Finishing : Polished,Spray Paint,Galvanized

Color : Black/Red/Yellow Or Customer Demand

Certificate : ABS,BV,DNVGL,KR,LR,NK,RINA,CCS,PRS,IRS,RS,CRS Certificated

Design : Simple And Sturdy

Port Of Loading : Qingdao, China

Contact Now

Hot Dipped Galvanized Steel Anchor Chain 2mm-22mm G80 Lifting Chain
This high-performance steel forging marine mooring & anchor chain features black coating and is available in both stud and studless link types. Professionally engineered for marine anchoring and mooring systems of various vessels and offshore facilities, it offers excellent structural strength, seawater corrosion resistance, and load-bearing capacity, fully compliant with international marine classification society standards.
Material Advantages
  • High-quality marine special alloy steel round bar, main grades include CM490 (U2 grade) and CM690 (U3 grade)
  • Customizable for U1/U4 grade requirements
  • Steel forging process optimizes internal metal structure, eliminating internal stress and significantly improving tensile, impact, and fatigue resistance
Chain Types
Stud Link Type: With internal reinforcing studs for stable structure that resists deformation, suitable for heavy load anchoring of large ships and offshore engineering. Nominal diameter range: 12.5mm - 120mm.
Studless Link Type (Open Link): No internal studs, lighter weight, easy to match with large shackles. Nominal diameter range: 12.5mm - 70mm; ideal for medium and small vessels and offshore permanent mooring.
Hot Dipped Galvanized G80 Lifting Marine Anchor Chain Rust Resistant for Marine Use Hot Dipped Galvanized G80 Lifting Marine Anchor Chain Rust Resistant for Marine Use

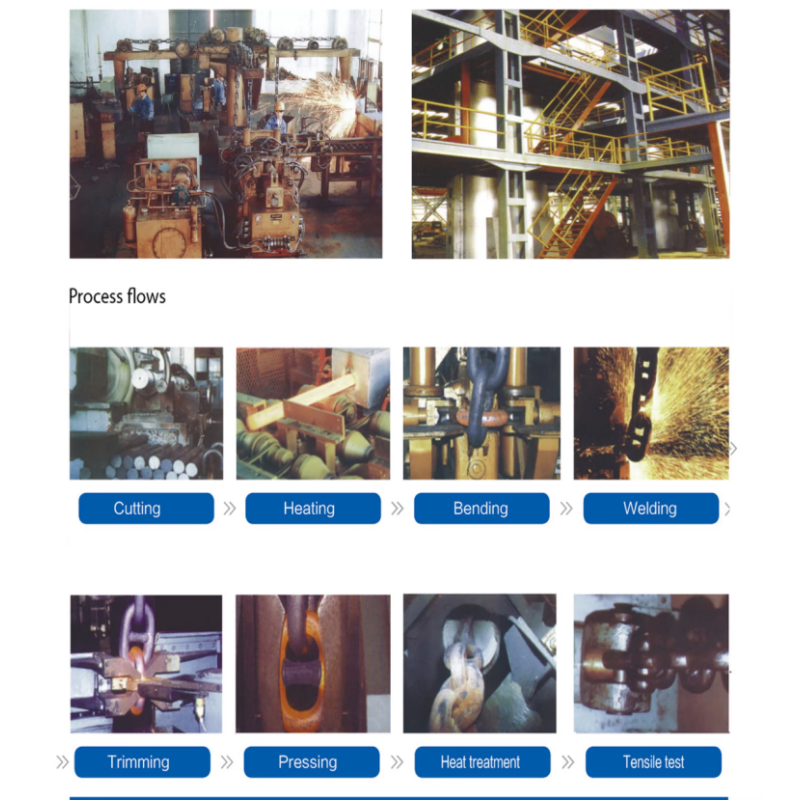

Manufacturing Process
  1. Raw Material Preparation: Selection of low-carbon steel wire rod with surface treatment and drawing to standard diameter
  2. Chain Forming and Welding: Specialized chain braiding equipment with flash butt welding and shaping
  3. Heat Treatment and Strength Testing: Overall tempering treatment with tensile testing and dimensional inspection
  4. Hot-Dip Galvanizing: Pre-treatment and immersion in molten zinc at 440-460℃ for corrosion protection
  5. Finished Product Inspection and Packaging: Final inspection including zinc layer adhesion and dimensional verification
Hot Dipped Galvanized G80 Lifting Marine Anchor Chain Rust Resistant for Marine Use

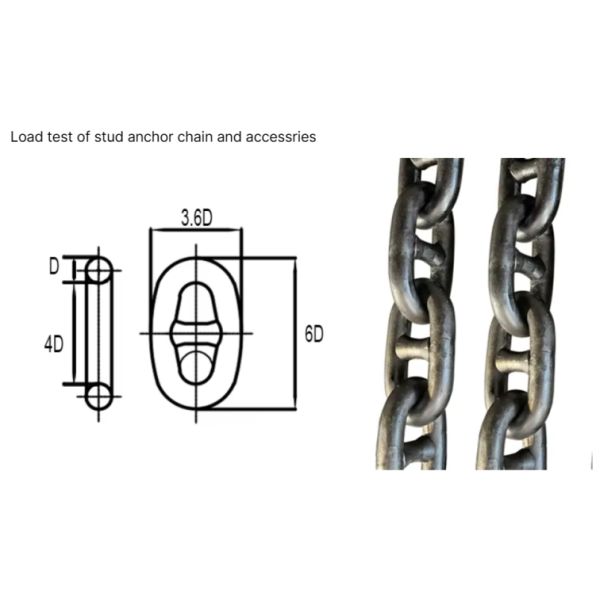

Technical Drawings
Hot Dipped Galvanized G80 Lifting Marine Anchor Chain Rust Resistant for Marine Use
Key Features
  • Ultra-high structural strength with stepped design enhancing resistance to stretching and twisting
  • Resistant to marine corrosion with dual protection of hot-dip galvanizing/asphalt coating
  • Excellent impact resistance and fatigue resistance with flexible rotating chain links
  • High adaptability, perfectly meshing with ship's anchor winch sprocket
  • Easy inspection and maintenance with visual damage assessment
Product Specifications
  • Chain Structure: Slotted design with solid slot columns to prevent stretching, twisting and entangling
  • Material and Grade: Hot-rolled anchor chain steel (CM490/CM690) in U2/U3 grades, with custom stainless steel 316/316L available
  • Diameter and Length: Standard chain diameter 36mm, standard link length 27.5m with custom lengths supported
  • Surface Treatment: Hot-dip galvanizing or black asphalt paint coating for different marine environments
  • Certification Standards: Certified by IACS international classification societies including CCS, ABS, LR, DNV, BV, NK, IRS
Hot Dipped Galvanized G80 Lifting Marine Anchor Chain Rust Resistant for Marine Use
Technical Parameters
Chain Diameter: Ranges from 12mm to 150mm (supports customization based on vessel tonnage and operation requirements)
Link Pitch: Strictly in line with standard ratios to ensure uniform force distribution
Length: Standard lengths include 25m, 50m, 100m per section; custom lengths available for specific project needs
Surface Treatment: Hot-dip galvanizing (zinc coating thickness ≥85μm) for excellent corrosion resistance; optional anti-corrosion treatments available
Applications
Widely used in various commercial ships including bulk carriers, oil tankers, container ships, and ferries, as well as marine engineering equipment such as offshore wind power platforms, offshore engineering vessels, and port operation vessels. Suitable for permanent anchoring and temporary mooring in various marine operation environments including open sea, nearshore areas, and ports.
Hot Dipped Galvanized G80 Lifting Marine Anchor Chain Rust Resistant for Marine Use

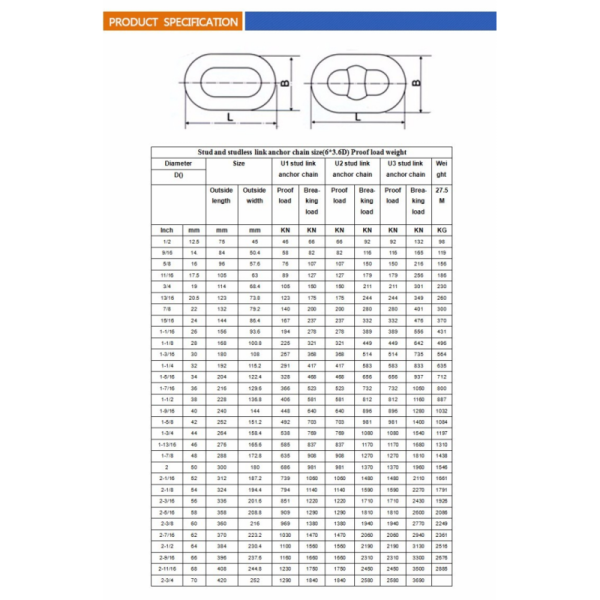

Certification & Load Performance
Obtained authoritative certifications from major international marine classification societies: CCS, ABS, BV, DNV-GL, LR, NK, KR, RINA, IRS
U2 Grade: Proof load 41.2KN-1280KN, breaking load 82.6KN-2560KN
U3 Grade: Proof load 56.4KN-1810KN, breaking load 112.8KN-3620KN
Standard Weight: 85.41kg-1032kg per 27.5m
Hot Dipped Galvanized G80 Lifting Marine Anchor Chain Rust Resistant for Marine Use
Customization & After-sales Service
  • Support non-standard customization of diameter, length, grade and surface treatment
  • Free product samples available (freight collect) with 12-hour quick response to inquiries
  • Flexible delivery cycle: 15-30 days for regular orders, customizable production plan for bulk orders
  • FOB Qingdao port optional, supporting T/T, L/C at sight and other payment terms
  • 24/7 customer service support from JinCheng Maritime
